Approved Fire License Agency Authorized by Director of Maharashtra Fire Services
Product Categories

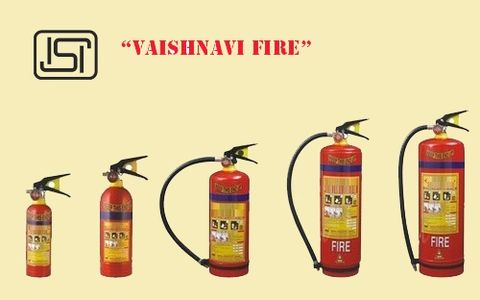

Extinguishers - ABC, CO2, Water Based, DCP and Modular Type
In the view of our enormous experience and specialization, we are counted amngost the foremost Supplier of ISI Mark ABC ABC, CO2, Water Based, DCP and Modular Type Fire Extinguishers under the brand name of 'Vaishnavi'. Our range is effective in performance and also considered as the best option for detecting fire. These are integrated with the hi-tech components that are ensured with the international standards of quality. We deliver all ranges Fire Extinguishers to the customers with the assurance of quality and smooth operations.
Features -
- Zero maintenance
- Excellent monitoring
- Efficient performance

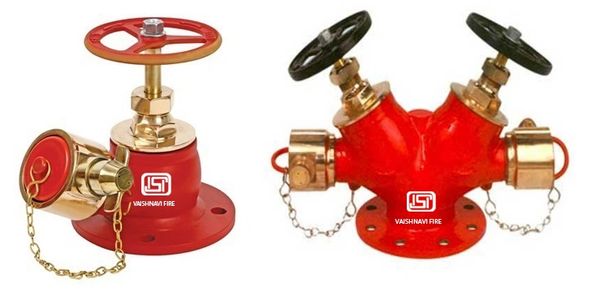

Landing Valves - Single and Double
Extreme durable in nature, these Single and Double Hydrant Valve are presented to the customers after complete inspection on numerous parameters. These hydrant valves are hard framed and easier to use.
In addition to this, these valves are quality checked by the experts several times before supplying in across country market for industrial purpose.
Features:-
- Bearing ISI marked
- Quality checked
- Easy to use
- MOC - SS and GM
- Ductile frame
Wall Mounting Hose Reel
We have entered in this industry with a sole purpose of delivering supreme class assortment of products to our patrons that guarantee longer life and consistency. Our provided assortment of Wall Mounting Type Hose Reel is thus manufactured keeping in mind the excellence characteristics we have assured in our initial years. Along with this, our products are tested stringently before getting provided at the destination of our patrons.
Features:
- Fixed / Swinging type
- Side plate powder coated finish red
- Threaded Inlet connection
- Outlet connection for hose can be rotated
- left and right direction
- Waterways made of seamless tube
- Operating pressure: 150 PSI Max/ 10.5 Kg/cm2
- III Flow rate: 6 GPM at 100 PSI / 24 LPM @ 7 Kg/cm2
Fire Hoses - Type B and CP Hoses.
So as to attain high level of customer credibility and trust, we are immersed in presenting a wide collection of Fire Hose. Making use of premium quality basic material together with advanced tools and tackles, these are made as per the predefined standards of superiority. Besides this, these are examined strictly before getting shipped at the destination of our customers.
Technical Specifications:
- RRL Delivery Hose - IS-636 Type A
- Sizes - 38, 50, 63, 70 mm
NOZZLES AND BRANCH PIPES
We are a leading Supplier & Distributor of Nozzles And Branch Pipesn s uch as PVC and ABS Nozzles, Short Branch Pipe, Triple Purpose Branch Pipes, Navy Type Branch Pipe and Jet Spray and Shut Off Nozzle from India.
Product Details:-
- Bearing IS 903 mark
- Inlet Connection: ½ ” Male Instantaneous
- Outlet: Solid Jet Nozzle
- Operating Pressure: 150 PSI Max / 10.5 kg/cm2
- Finish: Natural Polished
- MOC - SS/GM/Al. Alloy.
Dividing Breeching
To match with the varying needs and demands of our patrons, we are engaged in the domain of offering an enormous collection of Two Way, Three Way and Four way Inlet Breeching. Extensively applauded for their perfect finish and consistency, these are immensely cherished and acclaimed all over the country. Along with this, availability with us in varied sizes makes these a favored market choice.
Product Details:
- Body: Gun Metal or Aluminum Alloy or Cast Iron
- Inlet: Three Instantaneous with NRV
- Outlet: 6” NB Flanged
- Working Pressure: 150 PSI/ 10.5 kg/cm2
- Test Pressure: 325 PSI/22.5 kg/cm2
Sprinkler System
Fire Sprinkler systems are designed extinguish fire without any human participation. As soon as the fire protection system detects heat generated by fire, sprinklers will actively engage that area which is under fire only.
Available in Pendent and upright spray, 5 mm diameter glass bulb in standard response and 3 mm glass bulb in quick response.
Features :-
- Made out of bronze
- Maximum working pressure 175 PSI / 12.3 kg/cm2
Flexible Pipes
Sprinkler Hose [Sprinkler Flexible Hose (UL Listed / FM Approved)
Features :-
- Seamless finish
- Quality approved
- Corrosion resistance
Hose Box
In line to meet appreciation by the clients, these presented Door Hose Box are best in finishing and easier to use. Quality checked metal in used for the obtainment of these hoses. In addition to this, these hoses are optimal in finishing and easier to use. Safe from high pressure and temperature these boxes are crack resistant.
Product Details:-
- Suitable for storing two nos 7.5 mtr or 15 mtr hoses and one nozzle Model B
- H x W x D : 700 x 600 x 250 mm
- lightweight & weatherproof
- Wall mounted / self standing
- Finished with post office red color
Butterfly Valves
Butterfly valves allows for quick shut off. Butterfly valves are generally favored because they cost less than other valve designs, and are lighter weight so they need less support. The disc is positioned in the center of the pipe. A rod passes through the disc to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, so it induces a pressure drop, even when open ey are.
Design Standard -IS 13095, BS : 5155
Testing standard as per API,598, IS:5208
Available in - Gear Pneumatic and Electric actuation
The wafer style butterfly valve is designed to maintain a seal against bi-directional pressure differential to prevent any backflow in systems designed for unidirectional flow. It accomplishes this with a tightly fitting seal; i.e., gasket, o-ring, precision machined, and a flat valve face on the upstream and downstream sides of the valve.
Alarm Valve
Alarn Check valve available in 4" and 6" featured a grooved seat alarm port an external bypass and removable hand hole cover which is hinged to clapper assembly.
The Valve has both end inlet and outlet and is to be install vertically on a wet pipe sprinkler system and has capability of initiating the required alarm through water motor alarm or an electronic pressure switch.
